Not every dimension needs the same tolerance
Tighter tolerances can affect process planning, setup, inspection time and cost. Mark functional dimensions clearly, especially where a shaft, bushing, sleeve or pin must fit another component. A practical drawing separates critical features from general dimensions so the machining and inspection plan can focus on what actually affects function.
For example, a shaft diameter that fits into a bushing may need closer control than a non-contact outside surface. A sleeve internal diameter may be critical if it supports a moving shaft, while a cosmetic surface may need more attention to finish than to exact size. Clear priorities help keep the quote realistic.
What affects tolerance capability?
- Material and part geometry
- Diameter, length and wall thickness
- Tool access, setup and machining sequence
- Surface finish and thread requirements
- Heat treatment, plating or coating after machining
- Inspection method and batch consistency requirements
Fits, assembly and functional surfaces
A tolerance is easier to evaluate when the drawing explains the function. If a part needs to press into a housing, slide over a shaft, seal against a face or align a rotating assembly, that information should be included in the quote request. Without functional context, a tolerance may look simple on paper but create avoidable uncertainty during production review.
Functional surfaces should be marked clearly. These may include fit diameters, bearing surfaces, sealing faces, thread engagement areas, locating shoulders, groove widths and end faces that control assembly position. Non-functional surfaces can often use more general tolerances, which may reduce inspection time and cost.
Common tolerance concerns for turned parts

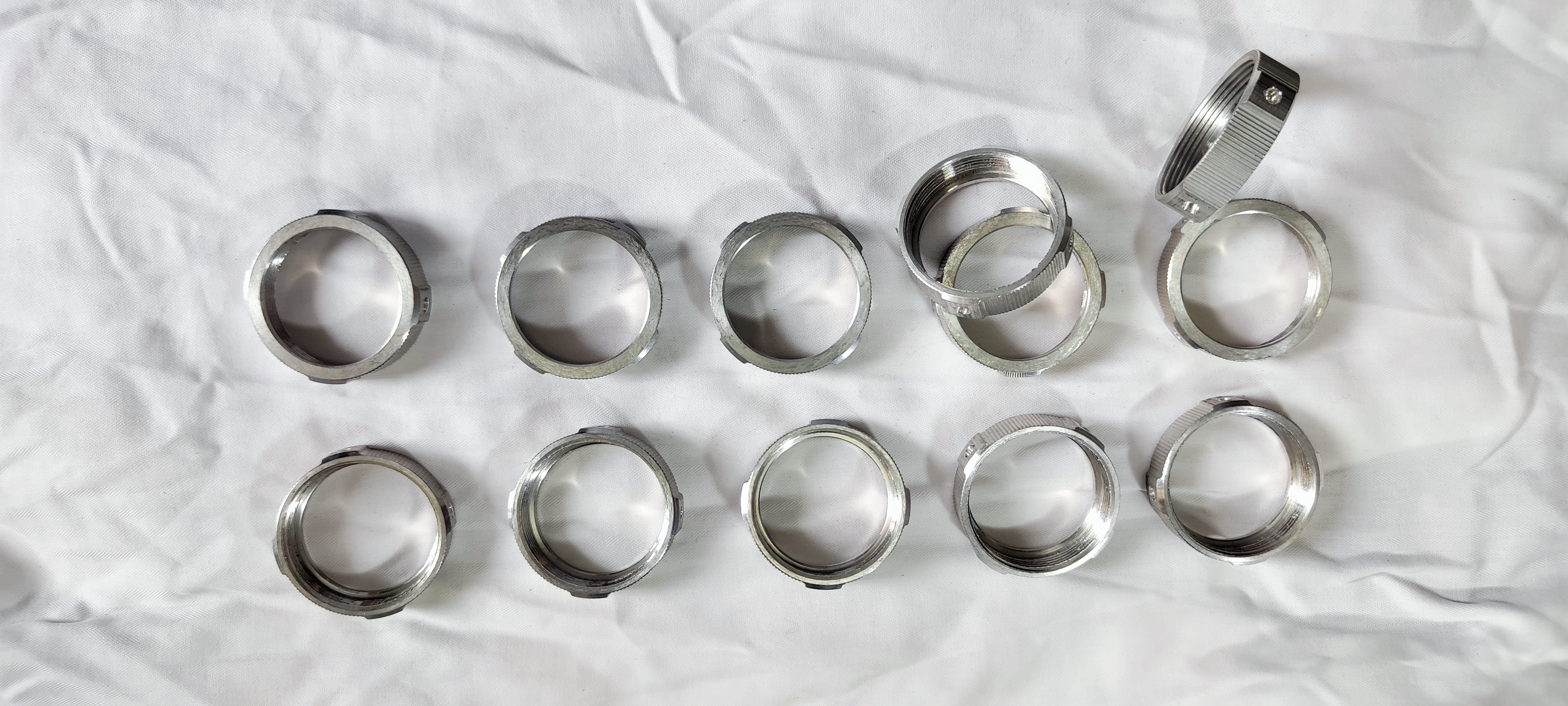

Shafts may involve diameter tolerance, straightness, runout, shoulder position and thread fit. Bushings and sleeves may involve internal diameter, outside diameter, wall thickness and face quality. Threaded connectors may involve thread class, sealing face quality, chamfer, relief and mating-part fit. Thin-wall, long, slender or multi-diameter parts can require extra review because setup and material behaviour affect consistency.
How tolerance affects inspection
Inspection method should match the requirement. Calipers, micrometers, height gauges, thread gauges and other tools may be used depending on the feature. If a report is required, confirm which dimensions should be recorded before production starts. For repeat supply, a stable inspection checklist helps keep batches consistent.
Inspection expectations should also consider volume. A prototype may need detailed confirmation on many features, while a repeat batch may focus on critical dimensions, appearance, thread fit and packing condition. Clear inspection priorities help prevent delays at the end of production.
What to show on the drawing
Identify critical diameters, lengths, fits, threads, runout requirements and any surfaces that affect assembly. Add notes for surface finish, deburring, edge break, plating, heat treatment and packing if they matter to the function or appearance. Forgeon reviews tolerance requirements against the drawing before quotation so the process and inspection plan can be discussed early.
How to avoid over-specifying
Overly tight general tolerances can increase cost without improving the part. If a dimension does not affect fit, function or appearance, a general tolerance may be enough. The most useful approach is to control the features that matter and keep other areas practical. This gives the buyer a better balance between function, cost and repeatability.
